Attractive Prices Of Cupboard Hinge Classic
About This Item
3 Ways Adjustment Structure(Vertical, Horizontal and Depth) & High-Quality Mechanism (Soft Close) which slowly pulls the Door closed for a Smooth Silent Motion. Reduced closing speed keep little fingers safe and unwanted sounds from kitchen

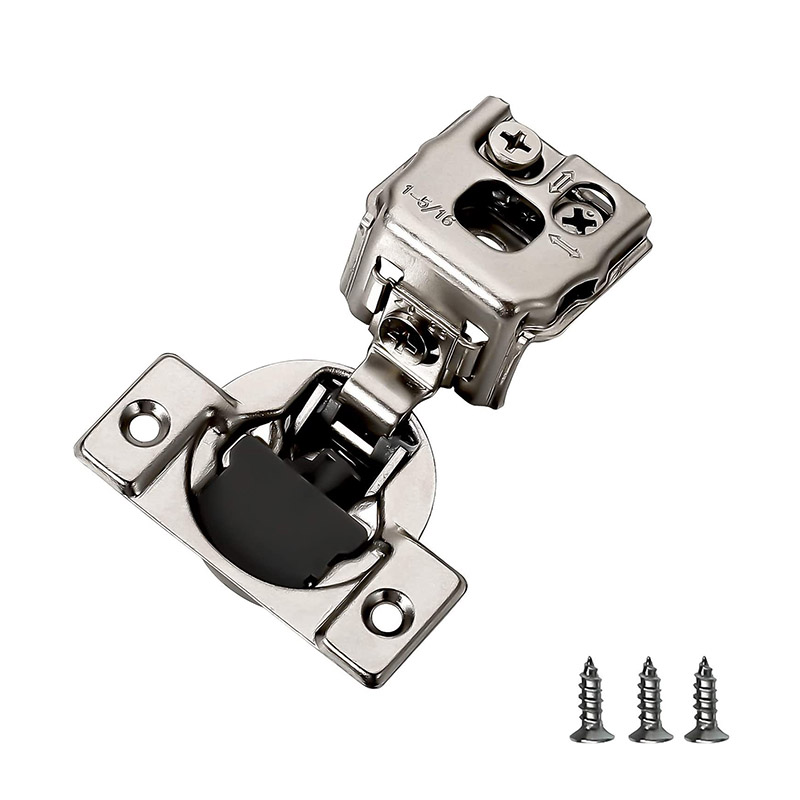

10 Pieces 105 Degree Face Frame 1-5/16" Overlay Self-Closing / Soft Close Cabinet Door Hinge, 1-5/16" Overlay Hinges are useful for pairs of doors in the middle of a run of Cabinets. They're easily installed requiring minimal carpentry skills
Cup Diameter: 35 mm (1-2/5"), Depth of cup: 11 mm(2/5"), Hole Distance: 45 mm(1-4/5"), Material: Cold-rolled Steel, Finish: Nickel Plated, Opening Angle: 105 Degree
These types hinge an ideal choice for face frame cabinets. It's useful for kitchen cabinet doors, wardrobe, tv cabinets, bookcases, wine, and other luxury door connection
HOW TO CHOOSE A HINGE - You need to pay attention to the thickness of the cabinet side panel(measure the distance the door panel overlaps the cabinet face) instead of the thickness of the cabinet door. You must choose the cabinet hinges that fit the side thickness of your cabinet. For example, if the thickness of the cabinet side panel is 1/2", then you should choose the corresponding 1/2" hinge
Product Description
| Size | 1-5/16" Overlay |
| Opening Angle | 105 Degree |
| Hinge Cup | 35mm Bore |
| Depth of cup | 10.9mm |
| Drilling distance on door(K) | 3mm |
| Range of door thickness | 14-26mm |
√ Three-way adjustability, just turn the screw, you can adjust the hinge position
√ Self-soft closing design with built-in damper
√ Heavy-duty stainless steel surface treatment, more durable
Technical Details
| Item Weight | 1.56 pounds |
| Package Dimensions | 7.24 x 4.69 x 2.64 inches |
| Size | 1-5/16" |
| Color | 10 Pieces |
| Finish | Nickel |
| Material | Nickel |
| Item Package Quantity | 1 |
| Number Of Pieces | 10 |
| Mounting Type | Door Mount |
| Batteries Included? | No |
| Batteries Required? | No |
